laser hair removal & skin rejuvenation IPL machine with
reliably After-Sales Service
System Introduction
Name: Intense pulse hair removal machine, skin rejuvenation, vascular removal,spot, skin Whitening, hair
removal etc. The treatment theory is the selective absorption
effect.
The system is controlled by MCU. It is composed of mainframe, touch screen
handles.
Operation and controlling part is in the mainframe. The controller
in it can monitor the machine comtinuously.
Controlling system: TFT touch screen, key switch and emergency stop etc
Power source: Supply the voltage(the core part of the machine)
Waterway: Help the treatment handle cooling
Power warehouse : store and release voltage
Screen: Display and adjust working mode and parameter
Treatment handle: Xenon, crystal, switch and transfer tools
Main Datas:
Technical Parameters |
wavelength | HR:690nm,SR:560nm,VR:420nm |
Discharge time | 1-3s |
First pulse width | 0.1-15.0ms |
Sub-pulse width | 0.1-15.0ms |
Energy density | 20-50J/cm2 |
Simmer time | 10ms-990ms |
Supply power mode | AC220V,50HZ AV110V,60HZ |
Spot size | HR:16mmX57mm SR/VR:8mmX34mm |
Cooling system | Water,wind,semi-conductor cooling |
Power | 1800W |
Security standard | MaxX10A |
Cooling Temperature | -22℃~0℃ |
Net weight | 40 Kg |
Gross weight | 55 Kg |
Handle' detail:
| Handpiece | Wavelength | Function |
| HR: Hair Removal | 690-1200nm | For permanently hair removal. |
| SR: Skin Rejuvenation | 560-1200nm | Reduce and remove pigmented lesions e.g. freckles, age spots,
sunburn spots; reduce wrinkles; shrink pores, rejuvenate skin and
enhance skin elasticity. |
| VR: Vascular Removal | 420-1200nm | Remove vascular lesions on face and bottlenose, Lighten and remove
acne. |
Treatment scope:
1. Remove undesired hair permanently from various areas of the
body, for all kinds of hair color.
2. Remove speckles, age spot, Genetic freckles from various types
of skin.
3. Remove vascular, bottlenose, erythema.
4. Skin rejuvenating and lessen deep wrinkle of Canthus and neck.
5. Shrink the coarse pore, eliminate or lighten the acne scar.
Unique Advantages:
1) Germany Sapphire crystal and xenon lamp
2).Three hand pieces (SR, HR,VR) on the unit
3) 16 * 57 mm large flare depilation crystal For HR/SR/VR, big enough spot can
save o lot of treatment time.
4).Germany Special Real Gem, which makes sure the shot pulse 99.9%
purity quotient
5) Three capacitances to store power, Capacity is12000uF/one.
6) Super cooling system: Japanese pump + 8 L big water tank +copper
condensers + strong Semiconductor+4 big DC fans, which can make sure the
machine continue working 12 hours.
7)Permanent hair removal for various hair color
8) Powerful software: the control screen plate can set any shoot
number,so it can be used as shoot number, or rent machine to
anybody( by setting number of the shoot

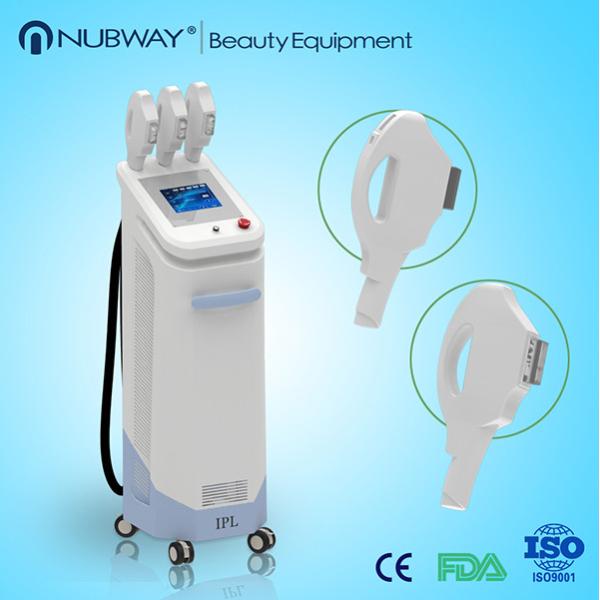

Real Product:
Easily Operation interface:
After-sales service:
| Service | 3 years warranty for the mainframe without charges for components
change or repairing. Lifetime maintenance without any charge. |
Free training for operation of the equipment in our company, which
provided by our specialized training department
|
On-line services, for example, technical consultancies provided by
our skilled technique group concerning any question of the laser
equipment, and after-sale maintenance and more. |
OEM/ODM services are available. We have our own developing and
design department and manufacturing line, which ensure your
required beauty equipment. |
